Lifted Spindle Service - Bay Window Bus Spindles

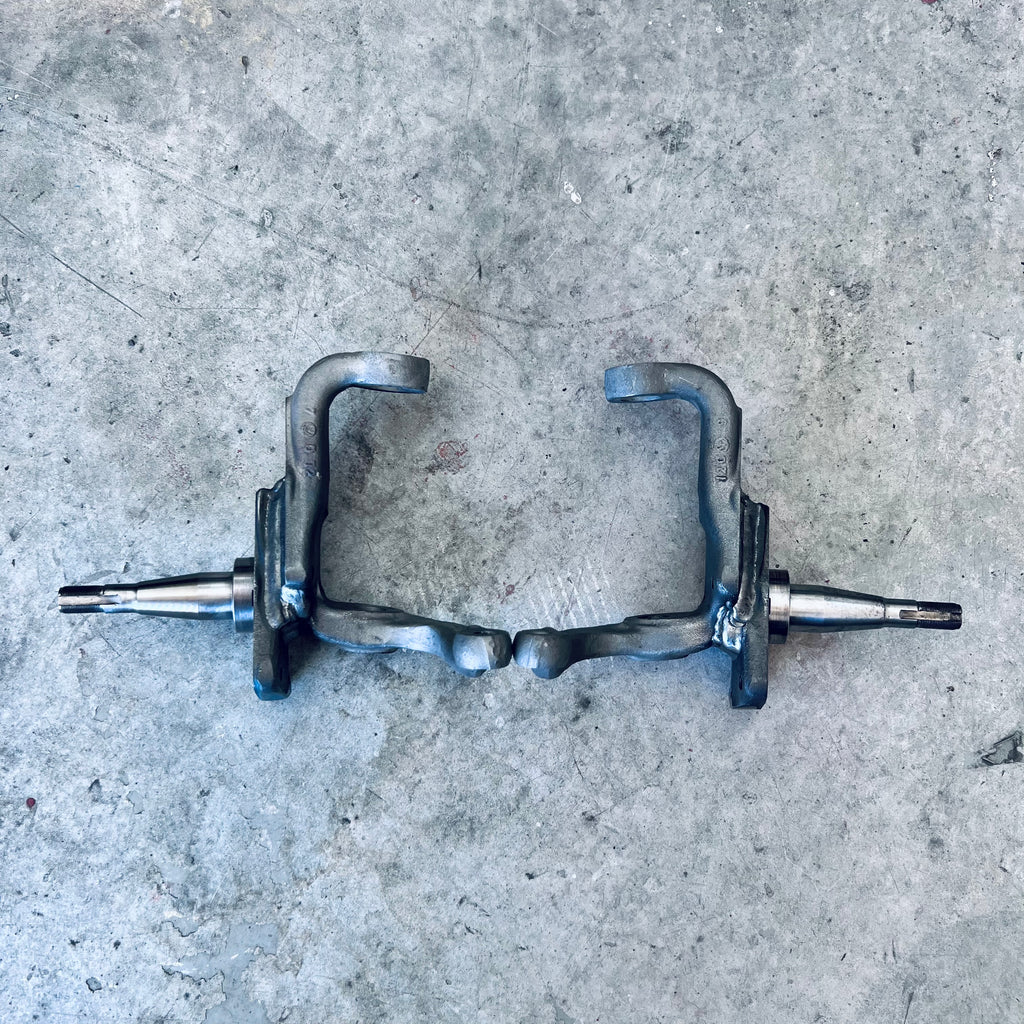

Custom built 2.5” lifted spindle Service for bay window bus spindle set.

Service is $995 and results in the following dimension changes:
+2.5” lift
+0.750 track width increase, per side

You must send us your spindles as cores, plus an additional 2nd set (it takes 4 spindles to make 2 lifted spindles.) The inner spindle set (base) must always be a 68-70 spindle regardless of years brakes

WE DO NOT PROVIDE SPINDLE CORES!

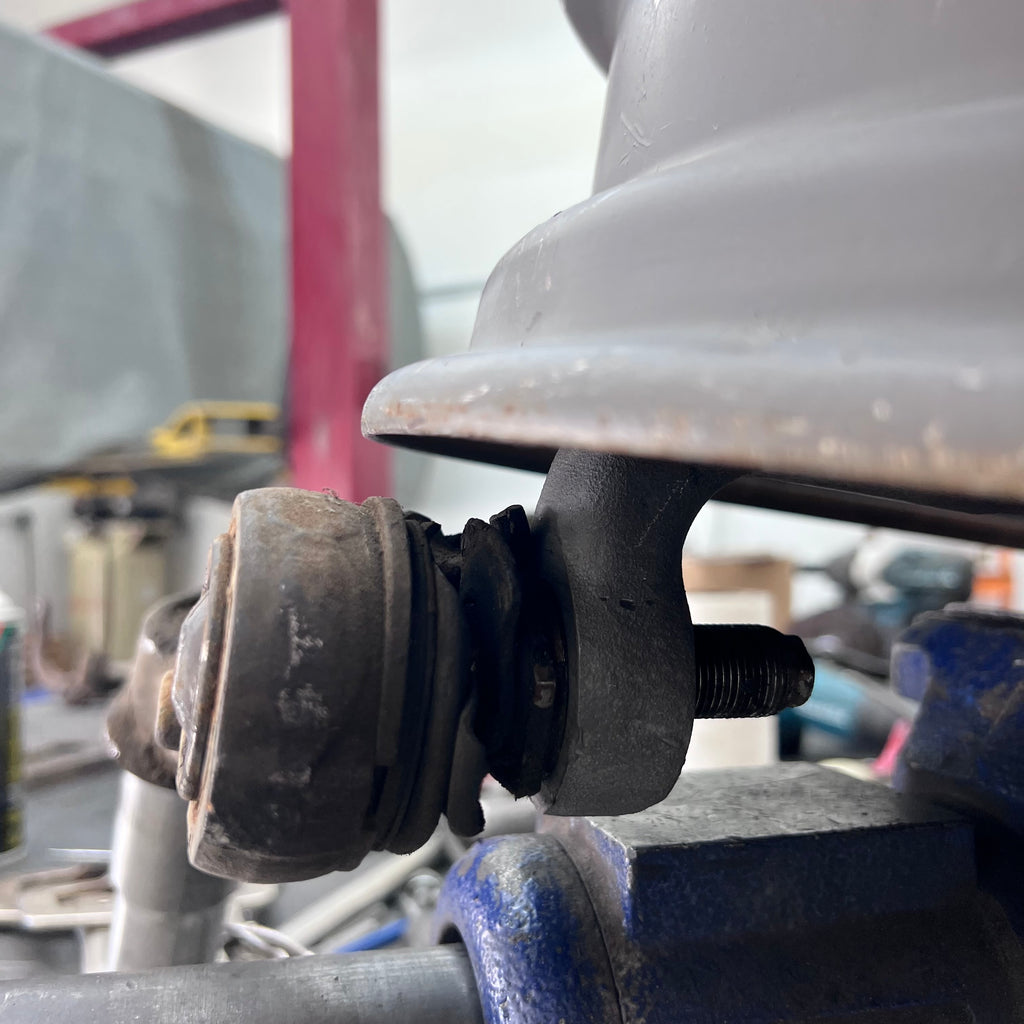

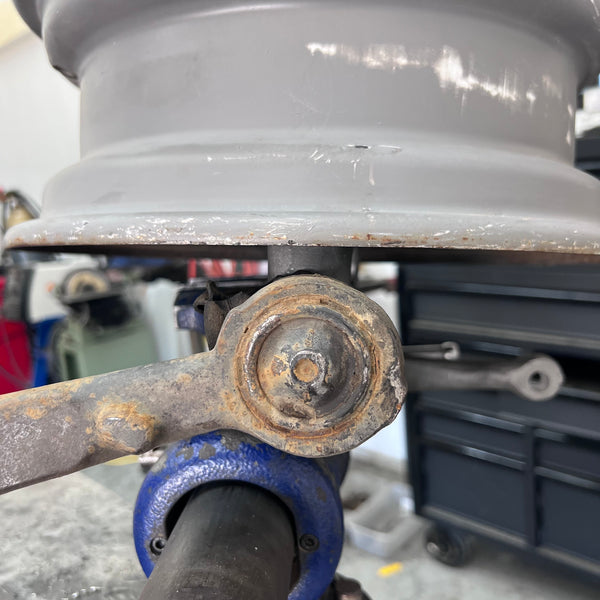

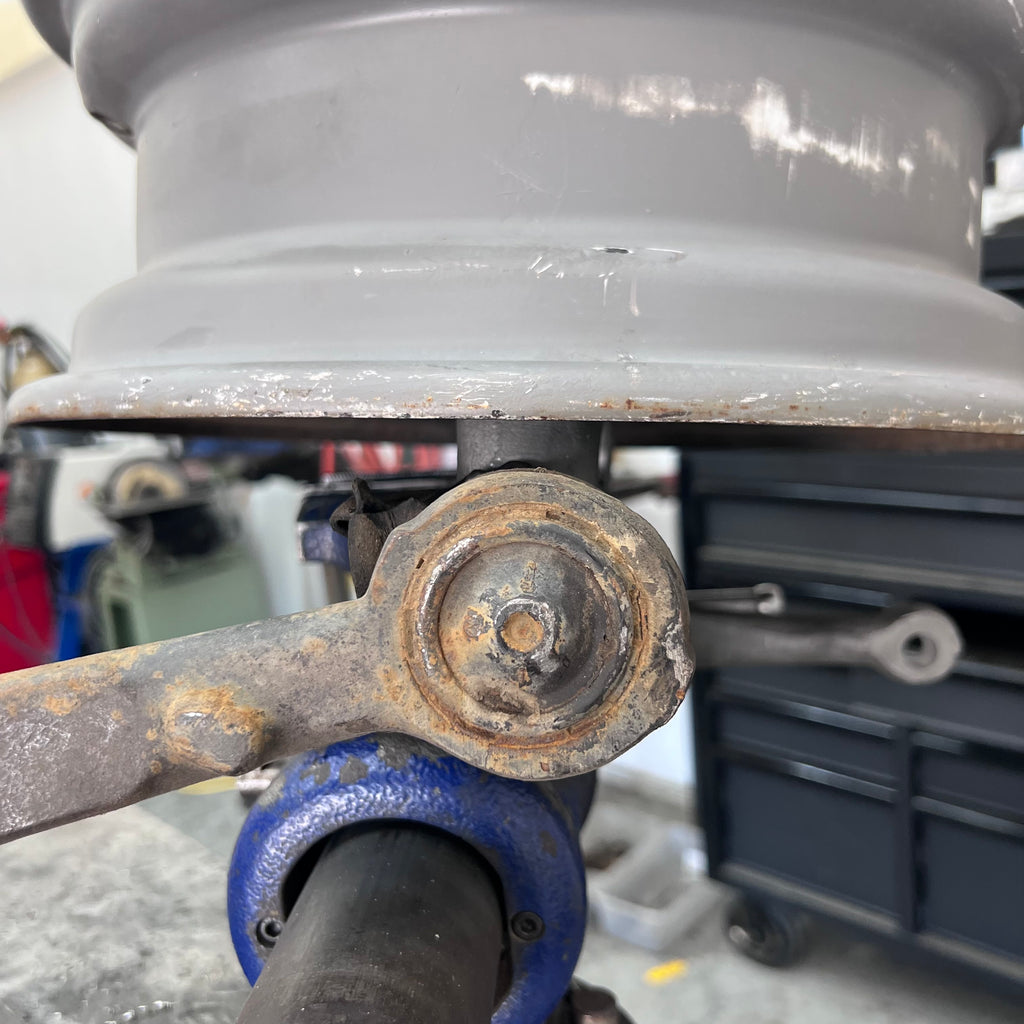

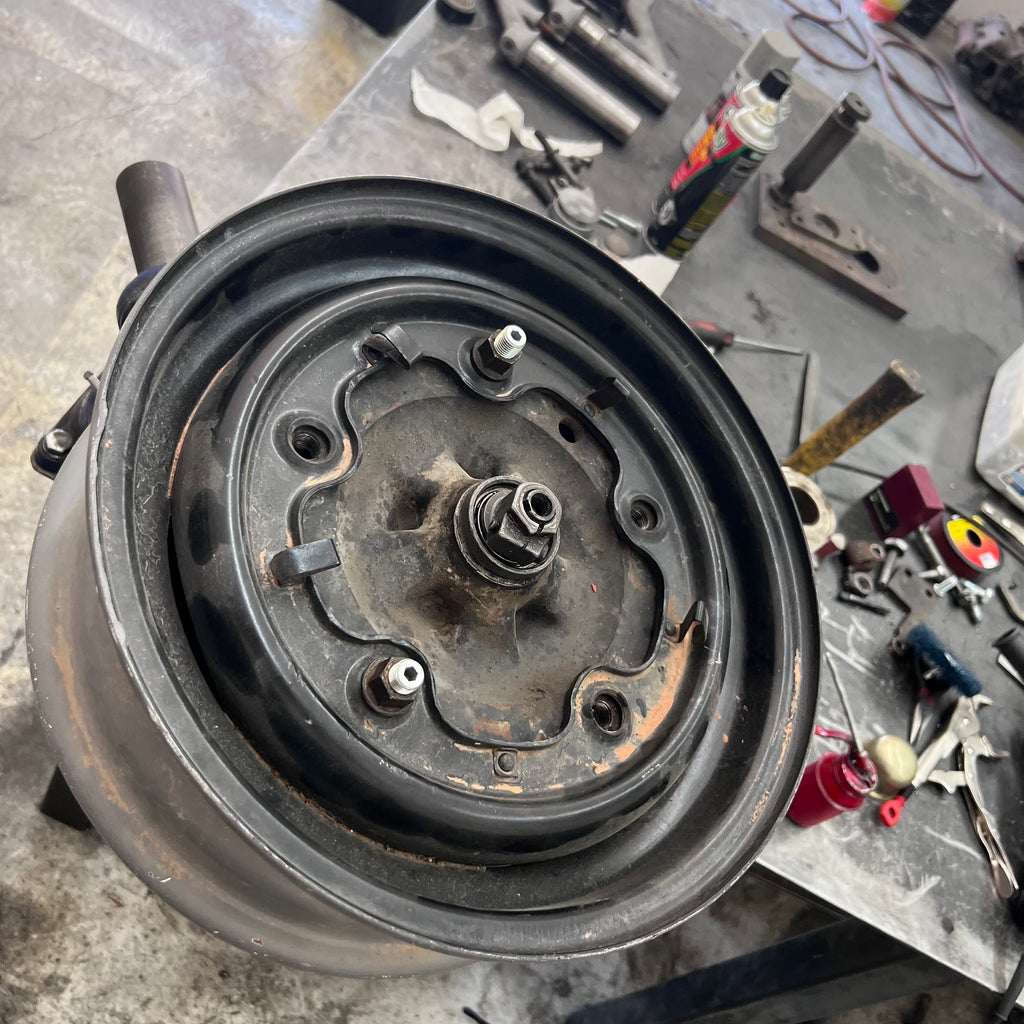

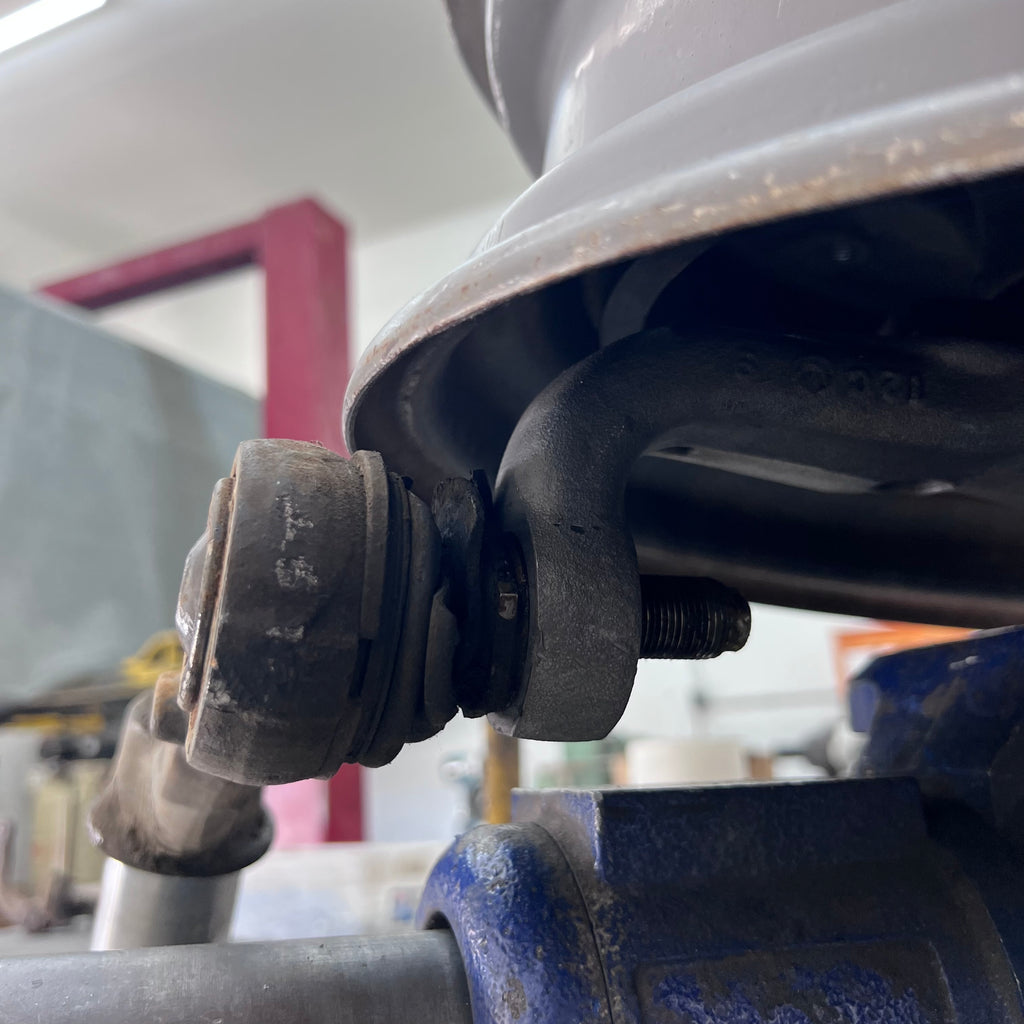

Additional wheel spacing may be required for your wheels to clear the ball joints & control arms. The photos provide here show the necessary track width increase with a stock 14” wheel on drum brakes, on our lifted spindle, to achieve wheel-to-arm clearance.

For 14” bus wheels or larger. Your tire selection may require additional wheel spacers for tire-to-arm clearance.

http://www.instagram.com/reel/CWqVc0FJoAc

1 week lead time.

Options are:

68-70 Spindles (drum brakes)

71-72 Spindles (12mm caliper mounts)

73-79 Spindles (14mm caliper mounts)
